COILS
浦谷エンジニアリングだから
できる高品質なコイル
浦谷エンジニアリングでは、あらゆる製品に対して適したコイル・モーターを製作しています。巻線はもちろんのこと、検査までを一貫して対応できますので、平角線を使用したコイルやエッジワイズコイルをはじめ、コイルの製作についてお悩みの方はぜひご相談ください。
こちらでは、当社がこれまでに制作してきたコイルの一部を一覧でご紹介しています。各コイルに関する詳しい情報は、画像をクリックしてご覧ください。当社では年間400件のコイル試作実績がありますので、こちらでご紹介していないものでも対応可能です。
Please contact us by telephone or fill out the email inquiry form for any consultations or inquiries regarding URATANI ENGINEERING coils and motors.
- HIDEYUKI OTA （+1）270―889－8774
- uratani-usa@uratani-eng.com
- KIYOTAKA KANZAWA +49 (0)162-3268-891
- uratani-europe@uratani-eng.com
COILS Edgewise coil
-

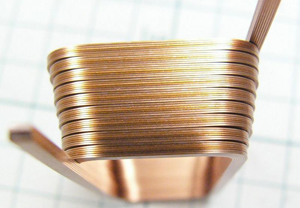

Edgewise coil
A rectangular-shaped copper wire and Edgewise Coil It's hollow. The same pipe.
-
Edgewise coil
"100 turns" rectangular-shaped Edgewise Coil It’s so beautiful!
-
Edgewise coil
"300 turns" Edgewise Coil
-
Edgewise coil
Made of aluminum!! It's an aluminum Edgewise Coil.
-
Edgewise coil
A coil in a copper tube like a pipe(tube) insulated with Kapton, etc.!!
-
Edgewise coil
Edgewise Coil to parallel winding!!
-
Edgewise coil
The most common trouble in coils is "connecting part"!!When connecting the 2-row coil, the connection part is something to worry about!! Bad crimping, welding and fusing!!
-
Edgewise coil
Edgewise coil of ellipse/oval or race track shape?Designation is yet to be determined but we don’t think it can be called oval.
-
Edgewise coil
A coil pipe with excellent cooling effect!!
-
Edgewise coil
A rectangular edgewise coil made of a rectangular copper wire wound and folded to form two layers.
-
Edgewise coil
The mass is said to be 1 part copper to 1.6 parts aluminum, but an aluminum rectangular wire used in place of a round copper wire can be made very light without increasing its size.
-
Edgewise coil
This will free you from the trouble of connecting two coils and worries about the connection.
-
Edgewise coil
Hard wires such as resistance wire (iron-chromium alloy) are also wound.
-
Edgewise coil
A thin (0.2 mm) and wide (2.5 mm) edgewise coil (wound upright).
-
Edgewise coil
The coil was developed to reduce copper loss which occurs in motors and reactors shifting to high-frequency range as well as to reduce the high lamination factor.
-
Edgewise coil
Coils used for low-torque generation such as a windmill.
